Auxiliary Pool Ladder Stabilizer Bracket (50mm - 44mm tube clamp)

We bought a plastic step ladder to make it easier and safer for my mother to get into the pool. However, being lightweight, it moved around a lot with the water flow, which was unstable and a bit scary.

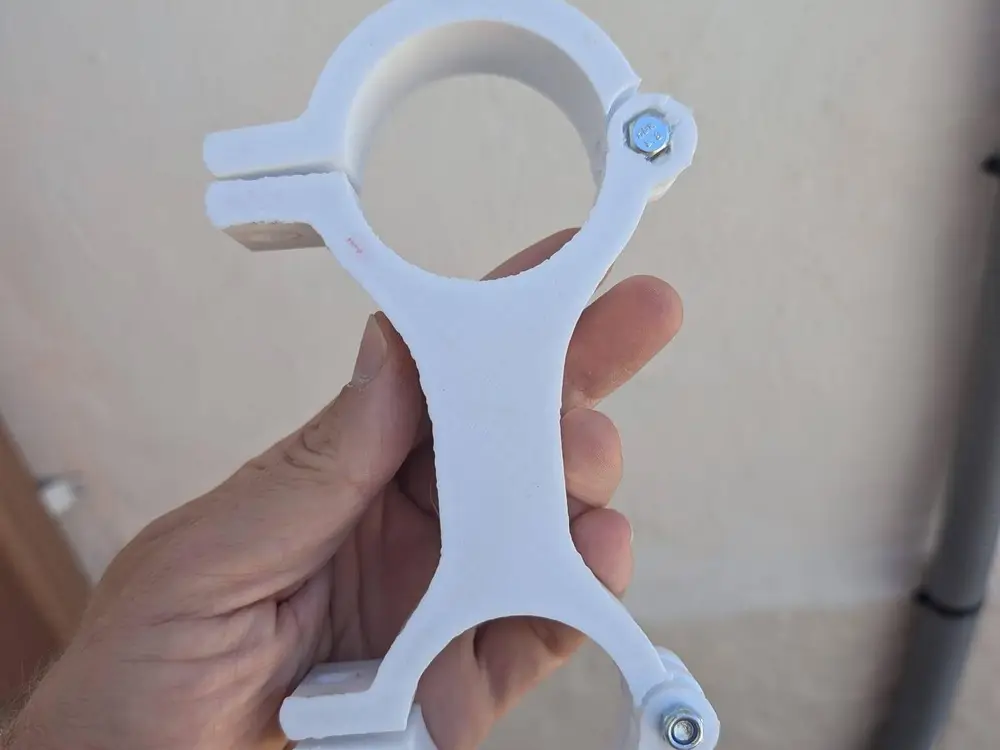

To fix this, I designed this 3D model. It is a double clamp specifically designed for 50mm and 44mm tubes respectively, which firmly attaches the new PVC/plastic ladder tube to the existing stainless steel pool ladder.

Desconocido

Now the auxiliary ladder is completely anchored and wobble-free. A great safety upgrade!

🔩 Hardware required:

• Hex bolts and nuts (Stainless steel highly recommended to prevent rust in the pool water).

⚙️ Print Settings:

• Material: PETG, ASA, or ABS are recommended for UV and chemical (chlorine) resistance.
• Infill: 40% - 60% (Gyroid or Cubic) for mechanical strength.
• Walls: 4 to 5 perimeters for maximum rigidity.
• Orientation: Print flat on the build plate for optimal strength along the tension axis.
