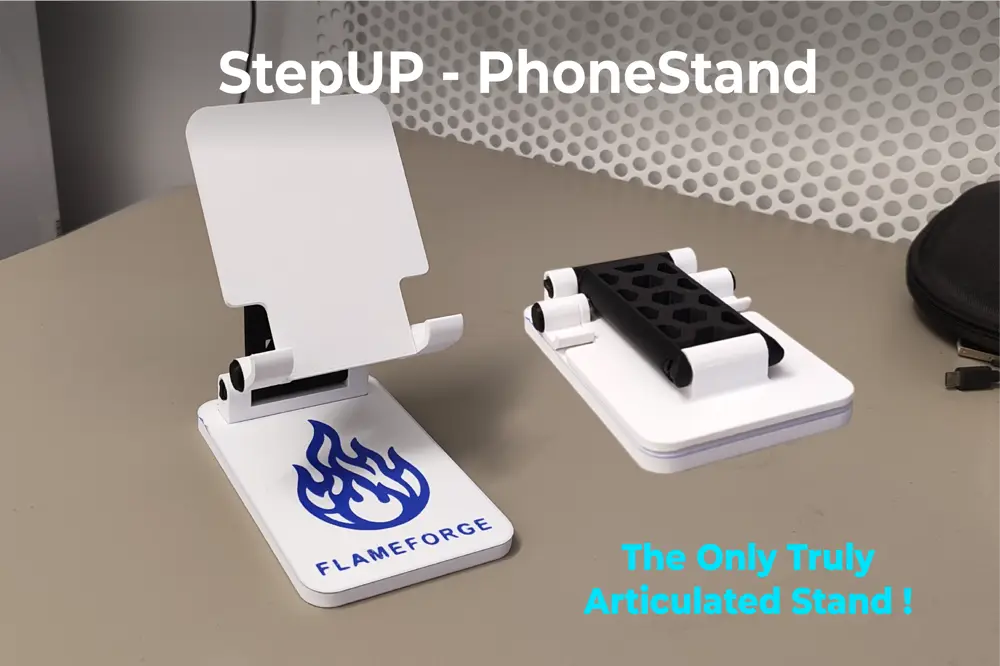

📱 StepUP — PhoneStand
⚡ 100% 3D Printed • Folds Completely Flat
Tired of flimsy phone stands that wobble when you type, require metal screws, or snap under load?
The StepUP Phone Stand by FlameForge is an engineered, heavy-duty desk stand featuring an ultra-rigid articulated mechanism held together entirely by printable press-fit components. No screws, no nuts, no glue required!
✨ Key Features
- 🔩 100% 3D Printeable: Every single joint, pin, and structural wedge is 3D printed.
- 📐 Fold Flat Portability: Collapses flat in seconds—slide it into your backpack or pocket with zero hassle.
- 🏋️ Extreme Stability (Tested up to 600g): Engineered with a low center of gravity and reinforced box arm. Rock-solid for aggressive typing in portrait mode and holds large graphics tablets or small iPads in landscape orientation without tipping backwards.
- 🔌 Unobstructed Charging Slot: Plug in your cable comfortably while working or watching media.
- 🎨 Dual-Color Friendly: Clean embossed branding ready for multi-color or manual filament swap on initial layers.
⚙️ Recommended Print Settings
- 🧵 Material: PLA or PETG (PLA High-Speed recommended)
- 📏 Layer Height: 0,2mm
- 🛡️ Walls / Perimeters: 2 to 3 walls (crucial for unbreakable pin strength!)
- 🧱 Infill: 20% TPMSD or Gyiroid
- ⭕ Brim: Optional (only if your bed adhesion is tricky on small pins)
🛠️ Quick Assembly Guide (Under 2 Minutes)
- Print the Parts: Print the base, arm, cradle, pins, and locking wedges (tacos).
- Insert the Main Pins: Align the hinge knuckles and push the printable pins straight through the channels.
- Insert the Locking Wedges (Bottom vs. Top):
- 🔹 Long Wedge (Bottom Hinge — Essential): Insert the longer wedge squarely at 90° into the rear slot of the bottom base hinge. Tap it gently with a small hammer until flush. This locks the structure and prevents any backward tilting.
- 🔹 Short Wedge (Top Hinge — Optional): The shorter wedge is for the upper hinge. For daily smartphone use, the top hinge is already stiff and solid without it, so it is optional (use it if you want an ultra-locked angle for heavy tablets).
- Ready to Use: Place your phone or tablet in portrait/landscape and enjoy your rock-solid stand!
🔥 Designed by FlameForge. If you like this model, please leave a Like ❤️ and post a photo of your Make!
