Triglycidyl isocyanurate 3D Molecular Model — CAS 2451-62-9

Triglycidyl isocyanurate (C12H15N3O6, CAS 2451-62-9) — a free educational 3D molecular model for teachers and students, by MolGod.org. Element symbols are cut into each atom sphere: a self-labelled teaching aid.

Turn the model in your hand to see the shape of Triglycidyl isocyanurate: four rings (three 3-membered and one 6-membered), and 39 bonds in total (36 single and 3 double). Quick starter: ask students to count the engraved symbols (12 C + 15 H + 3 N + 6 O) and check that they add up to 36 atoms and the formula C12H15N3O6. On the printed model, students can point to the isocyanurate ring (six-membered ring of alternating N atoms and C=O groups) and the three epoxide rings (three-membered C-O-C ring). Triglycidyl isocyanurate brings three stereocentres without an assigned R/S label: a good prompt for discussing enantiomers. Topics it supports in class: chirality, enantiomers and CIP (R/S) rules, the carbonyl group (C=O), as well as ring strain in three-membered rings.

MolGod.org publishes its molecular models free of charge for teachers and students. Teachers: the engraved symbols let students work with the model without a separate key.

Full record and more free models: https://molgod.org/molecule/2451-62-9/?utm_source=printables&utm_medium=referral&utm_campaign=edu-3d-models

Licence & provenance: https://molgod.org/licenses/stl/2451-62-9/

Same file on Wikimedia Commons: https://commons.wikimedia.org/wiki/File:Triglycidyl_isocyanurate-3D-molecular-model-engraved-CAS-2451-62-9.stl

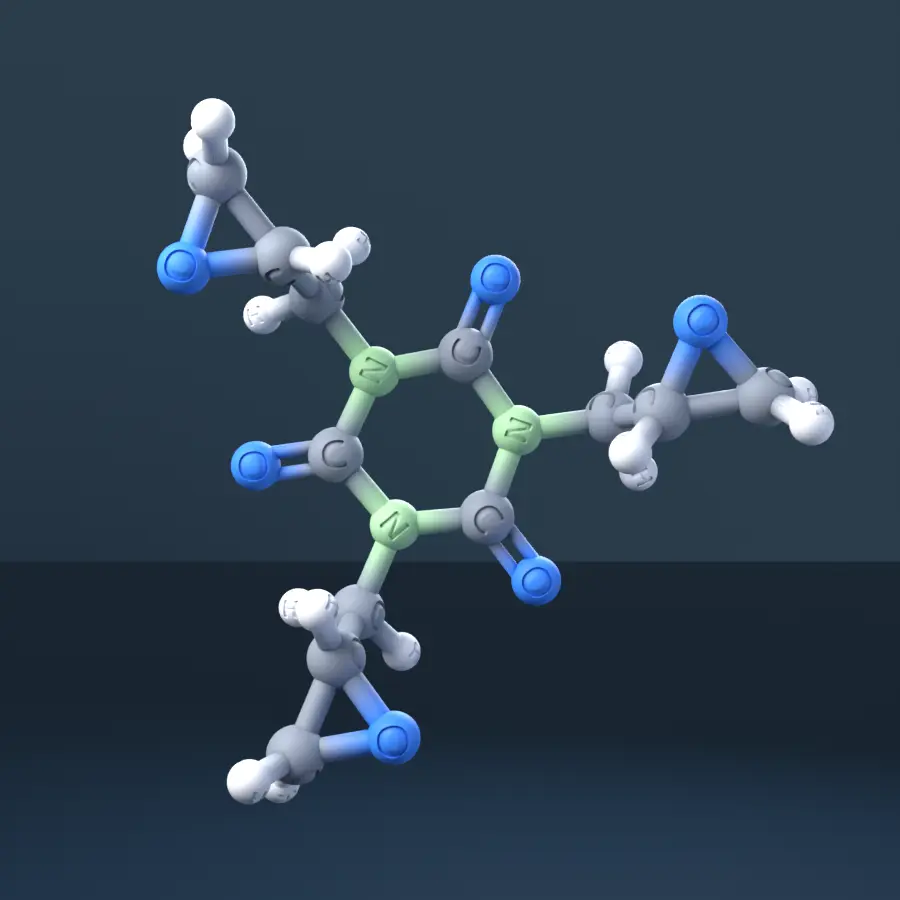

A ball-and-stick model of Triglycidyl isocyanurate with each element symbol recessed into its atom sphere, generated by MolGod.org from a PubChem-computed 3D conformer (not an experimental crystal structure); atomic coordinates and connectivity are unchanged. STL mesh: 465,186 triangles, closed (watertight) single solid. Coordinates in ångström (STL stores no unit) — scale the model deliberately in your slicer.

Names in other languages: Triglycidylisocyanurat (de); Triglycidylisocyanuraat (nl).

Chemical identity: CAS Registry Number: 2451-62-9 | Molecular formula: C12H15N3O6 | Molar mass: 297.26 g/mol (exact mass 297.09608521) | IUPAC name: 1,3,5-tris(oxiran-2-ylmethyl)-1,3,5-triazinane-2,4,6-trione | MolGod ID: MG_231-545-315-68 (https://molgod.org/id/MG_231-545-315-68) | PubChem CID: 17142 (https://pubchem.ncbi.nlm.nih.gov/compound/17142) | Wikidata: Q2453240 (https://www.wikidata.org/wiki/Q2453240) | EC number: 219-514-3 | ChemSpider ID: 16226 | InChIKey: OUPZKGBUJRBPGC-UHFFFAOYSA-N | SMILES: C1C(O1)CN2C(=O)N(C(=O)N(C2=O)CC3CO3)CC4CO4

Required attribution (CC BY-SA 4.0): "Triglycidyl isocyanurate 3D model by MolGod.org — https://molgod.org/molecule/2451-62-9/ — CC BY-SA 4.0"

Licence text: https://creativecommons.org/licenses/by-sa/4.0/
